Boats 13-26ft / 4-8m

Join the growing number of Australian and international boat builders and boat owners who prefer a Stressfree Marine anchor winch for their boat.

The following table provides an overview of the best winch options for boats up to 13-26 ft / 4-8m with a maximum weight of 2.5 ton. Choose from any of the following winches in our Standard or Freefall ranges.

Contact Stressfree Marine today for current specials and pricing.  Australia: 08 8382 5283 / International: +61 8 8382 5283

Shop Now

ProductMotor PowerVoltageGearboxShaft SizeBaseplateDiameter DrumLine Speed MaxEmergency Manual OverrideWeight

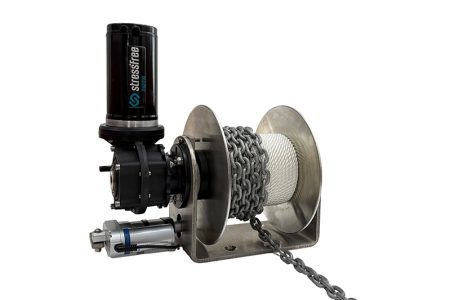

NG Mini 50 Freefall or

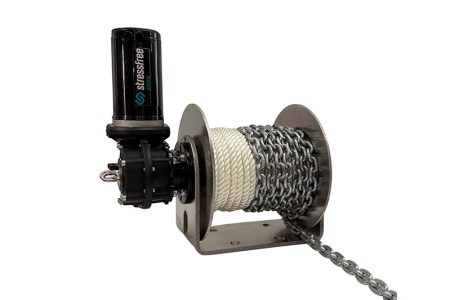

Mini 50 Standard
500watt12v50S0.98” / 25mm0.31” / 8mm pressed9.84” / 250mm170 ft /
52 m per minute
48.50lbs / 22kgs

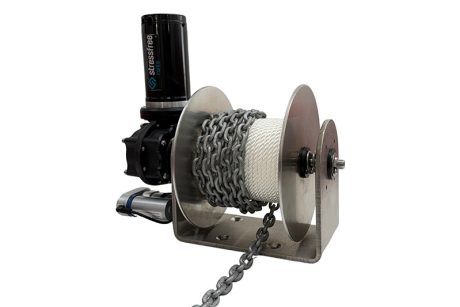

NG Mini 50 Freefall EW or
Mini 50 EW Standard
500watt12v50S0.98” / 25mm0.31” / 8mm pressed9.05” / 230mm170 ft /
52 m per minute
48.50 / 22kgs

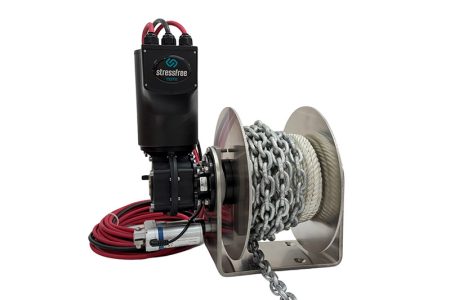

NG Midi 50 Freefall or

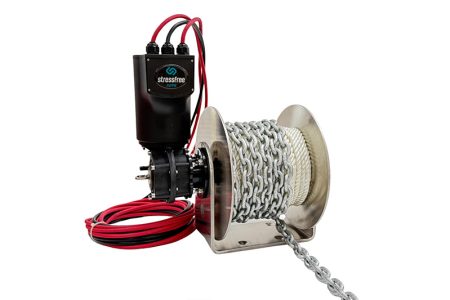

Midi 50 Standard
1400watt12v50S0.98” / 25mm0.31” / 8mm pressed11.81” / 300mm243 ft /
74 m per minute
64lbs / 29kgs

Stressfree Marine Freefall Anchor Winches

These Stressfree Marine anchor winches additionally feature:

  • Adaptable fit and varied mounting options, with the ability to reset the gearbox and motor assembly in 8 different configurations to best suit your anchor well
  • Optional deck mounting
  • One-touch precision anchoring for fast deployment and minimal drift to make anchoring a breeze (on all NG Freefall winches)
  • All rope and chain is spooled on and off the drum (on all NG Freefall winches)
  • Premium quality Italian motor and gearbox
  • 1400watt motor, sealed with 5 meters of cable
  • A waterproof circuit breaker with thermal overload cut-out
  • 50 series double anodised gearbox to prevent corrosion
  • Solid stainless steel drive shaft
  • Grease impregnated acetyl bush for superior performance
  • Constructed from 316 L grade marine stainless steel
  • Optional Pro-series casing upgrade
  • Optional waterproof wireless remote
  • 5-year warranty

Contact Stressfree Marine today for current specials and pricing or complete our Winch Match Form and one of our Specialists will get back to you.
